LRST Low Pressure Pullplugs

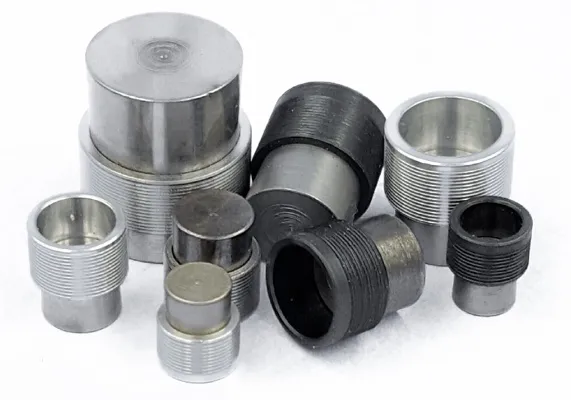

LRST Low Pressure Pullplugs - Overview

Sleeve and Pin Materials: See Below
Max. Operating: 60 Bar (900 psi)

Sleeve and Pin Materials: See Below
Max. Operating: 60 Bar (900 psi)

EIS LRST Metric Series PULLPLUGS™
Dimensions in mm unless otherwise specified
D1	L1	D2 +0.1 / -0.0	L2 REF	Stroke	T	EIS P/N
5.0	7.5	5.0	4.5	3.0 +0.00 / -1.0	4-40UNC	EIS-□LRST○-050
6.0	8.5	6.0	5.0	3.5 +0.00 / -1.0	3.0 x 0.5	EIS-□LRST○-060
7.0	9.5	7.0	5.5	4.0 +0.00 / -1.0	6-32UNC	EIS-□LRST○-070
8.0	11.5	8.0	6.5	5.0 +0.00 / -1.0	4.0 x 0.7	EIS-□LRST○-080
9.0	11.5	9.0	6.5	5.0 +0.00 / -2.0	4.0 x 0.7	EIS-□LRST○-090
10.0	11.5	10.0	6.5	5.0 +0.00 / -2.0	5.0 x 0.8	EIS-□LRST○-100
12.0	13.2	12.0	7.5	5.7 +0.00 / -2.0	5.0 x 0.8	EIS-□LRST○-120
14.0	13.9	14.0	8.0	5.9 +0.00 / -2.0	6.0 x 1.0	EIS-□LRST○-140
16.0	18.2	16.0	10.5	7.7 +0.00 / -2.5	8.0 x 1.25	EIS-□LRST○-160
18.0	20.2	18.0	12.0	8.2 +0.00 / -2.5	8.0 x 1.25	EIS-□LRST○-180
20.0	21.2	20.0	12.5	8.7 +0.00 / -2.5	10.0 x 1.5	EIS-□LRST○-200
22.0	22.2	22.0	13.0	9.2 +0.00 / -2.5	10.0 x 1.5	EIS-□LRST○-220

□
Plug Material:

○
Pin Material:

Example:
EIS-5LRST5-100 (6061 aluminum plug with 7075 T6 aluminum pin)

Patent: 10,040,182

Max. Operating: 60 Bar (900 psi)
